Metehe Concertto Vivo 400

Metehe Concertto Vivo 400 product sheet’s material is 0.70 mm colour-coated steel sheet. Effective width of the product sheet is 1,200 mm and the maximum length is 3,200 mm. Concertto Vivo 400 panels’ width is 400 mm and the length of the panel can be chosen steplessly between 300 mm, 400 mm or 600 mm. The number of panels can be selected in such a way that the maximum length of the sheet is not exceeded. The coating options are PVDF+ and PVDF+ Matt (coating warranty 20 years).

The Concertto Vivo is most commonly used as an effect for the Concertto facade, in which case the facade can be provided expression and liveliness.

Metehe Oy
Topi Konttinen
tel. +358 207 639 658
topi.konttinen@metehe.fi

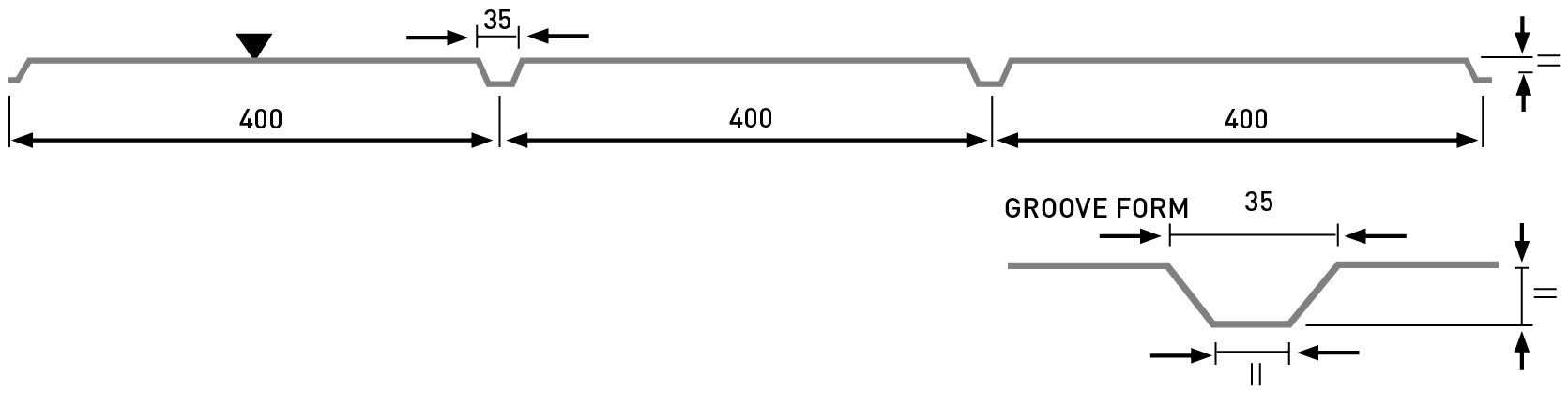

Dimensions

DIMENSIONS


Metehe Concertto Vivo 400

ApplicationInner and outer surfaces of buildings
MaterialHot-galvanised steel sheet with PVDF coating (protective film),
material thickness 0.70 mm
Module width3 x 400 mm
Module length300 mm, 400 mm or 600 mm
Usable width of sheet1,200 mm
Maximum length of sheet3,200 mm
Profile height11 mm



Colours and coatings

Please note that the colours are for reference purposes only and may differ from the sheet metal’s true colour tone. Please contact us and we will deliver a sheet metal colour sample of your chosen material.
Metehe Oy
tel: +358 207 639 640
myynti@metehe.fi

20 White
PVDF+ Matt

23 Dark Grey
PVDF+ Matt

40 Silver
PVDF+ Matt

41 Dark Silver
PVDF+ Matt

Brochures and instructions

The brochures on the website are in Finnish, unless stated otherwise.

Metehe Julkisivuverhoukset -esite FI
Suunnittelu- ja asennusohje FI

Metehe Concertto Vivo brochure
Metehe Concertto brochure EN
Design and installation EN
Metehe Concertto references brochure EN

Design and details

Browse the details here
