Metehe 20 Seinä A / B

The low and straight Metehe 20 profiled sheet is an affordable option for a facade profile. The product is manufactured with 0.45 – 0.60 mm colour-coated steel sheet and it is suitable as facade material in both commercial and industrial buildings. Coating options PUR, PUR Matt and PVDF+ (technical warranty 50 years), HC25 (technical warranty 40 years) and PE (technical warranty 30 years). The product is also available as a perforated version.

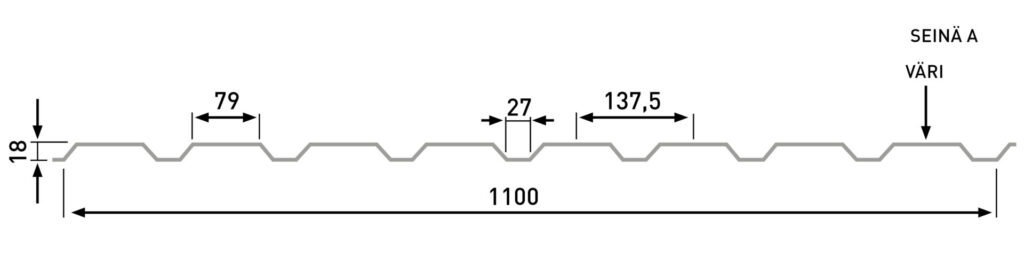

Profile dimensions wall sheets dwg

Metehe Oy
tel: +358 207 639 640
myynti@metehe.fi

Dimensions

DIMENSIONS

Metehe 20 Seinä A

Metehe 20 Seinä B



Application:Wall sheet for facades
Material:Colour-coated 0.45-0.60 mm steel sheet
Dimensions:Usable width 1,100 mm
Total width ~ 1,145 mm
Total height 18 mm
Standard length 100–12,000 mm
Installation:With roofing screws from the base of the groove



Colours and coatings

Please note that the colours are for reference purposes only and may differ from the sheet metal’s true colour tone. Please contact us and we will deliver a sheet metal colour sample of your chosen material.
Metehe Oy
tel: +358 207 639 640
myynti@metehe.fi

11 Spruce Green
PUR

20 White
PE, HC25, PUR, PVDF+

21 Light Grey
PE, HC25, PUR, PVDF+

22 Grey
PUR, PVDF+

23 Dark Grey
PE, HC25, PUR,
PUR Matt, PVDF+

24 Light Yellow
PUR

29 Red
PE, HC25, PUR,
PUR Matt

30 Light Brown
PUR

31 Brown
PUR

32 Dark Brown
PE, HC25, PUR,
PUR Matt, PVDF+

33 Black
PE, HC25, PUR,
PUR Matt, PVDF+

34 Light Blue
PUR

35 Blue
PUR, PVDF+

36 Light Green
PUR

37 Green
PUR

40 Silver
HC25, PVDF+

41 Dark Silver
HC25, PVDF+

42 Gold
PVDF+

43 Copper
PVDF+

45 Metallic Graphite
PVDF+

750 Brick Red
PUR, PUR Matt
