Metehe Concertto 600

Metehe Concertto 600 product sheet’s material is 1.00 mm warranty-coated steel sheet. The usable width of the product sheet is 1,200 mm and the maximum width is 3,200 mm. Concertto 600 panes’ width is 600 mm and the length of the panel can be freely chosen between 300-1,200 mm. The number of panes can be selected in such a way that the maximum length of the sheet is not exceeded. The coating options are PVDF and PVDF+ matter, and their coating warranty is 20 years, as well as PUR35, which has a coating warranty of 15 years.

The Concertto product sheet is mainly used for horizontal installations, in which case an extremely stylish and horizontally streamlined facade can be achieved. The final result in a horizontal installation is finished with the corner pieces of the Concertto system.

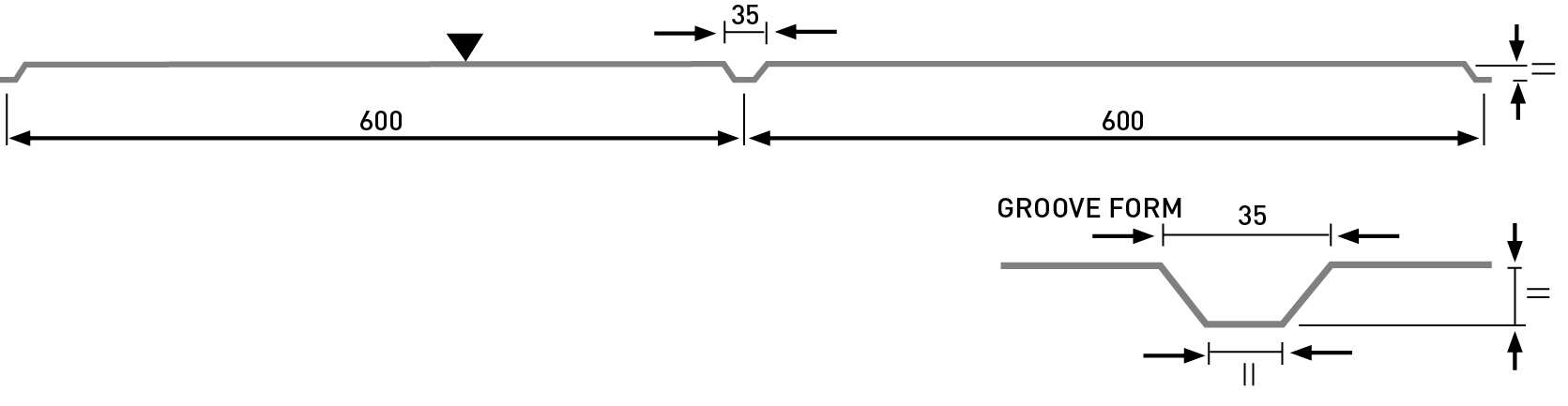

Dimensions

DIMENSIONS


Metehe Concertto 600



ApplicationOuter and inner surfaces and ceilings of buildings
MaterialHot-galvanised steel sheet with PVDF coating (protective membrane) or paint coating,
material thickness 1.00 mm
Module width2 x 600 mm
Module length300–1,200 mm
Usable width of sheet1,200 mm
Maximum length of sheet3,200 mm
Profile height11 mm



Colours and coatings

Colour 20 White
PVDF+ Matte
Colour 40 Silver
SDP35
Colour 21 Light grey
PVDF+ Matte
Colour 41 Dark silver
PVDF+ Matte
Colour 22 Grey
SDP35
Colour 43 Copper
PVDF+ Matte
Colour 23 Dark grey
PVDF+ Matte
Colour 45 Metallic graphite
PVDF+
Colour 35 Blue
PVDF+ Matte
Colour RAL3000 Flame red
SDP35



Metehe Concertto corner


Metehe Concertto corner 600



ApplicationOuter corners of buildings
MaterialHot-galvanised steel sheet with PVDF coating (protective membrane) or paint coating,
material thickness 1.00 mm
Module height2 x 600 mm
Usable length of side (A and B)150–600 mm
Usable height of corner1,200 mm

Brochures and instructions

The brochures on the website are in Finnish, unless stated otherwise.

Metehe Julkisivuverhoukset -esite FI
Suunnittelu- ja asennusohje FI

Metehe Concertto brochure EN
Design and installation EN
Metehe Concertto references brochure EN

Design and details

Browse the details here
